Network Adapters solution

This documentation concerns a problem of network adapters that randomly changes NIC config after reboot and creating hidden devices in device manager.

1. Go to BIOS (F2 or DEL)

2. Go to « Advanced Mode » by pressing F7

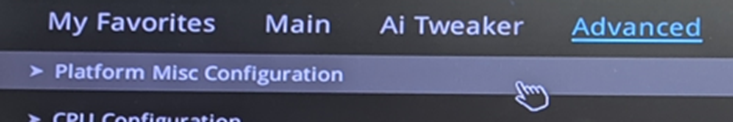

3. Go to Advanced > Platform Misc Configuration

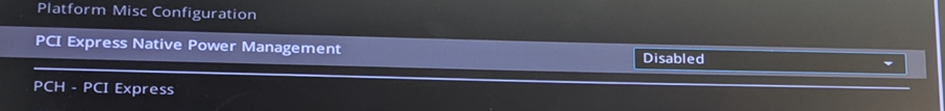

4. Set PCI Express Native Power Management to disabled

5. Save and exit

6. In Windows, go to Device Manager > View  > Show Hidden Devices and enable it

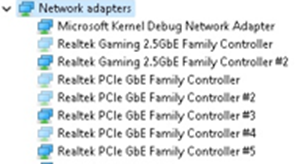

7. Uninstall the Realtek hidden adapters :

8. Do Win+R and type « ncpa.cpl » and press enter (to go to network adapters list)

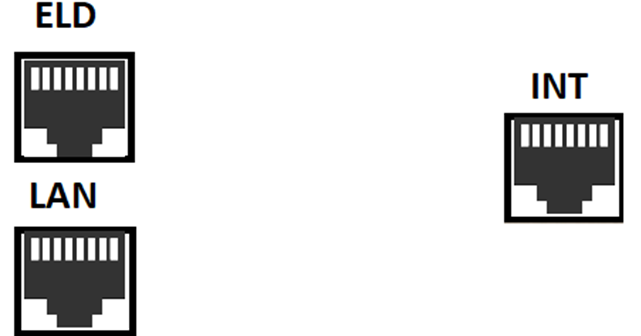

9. Reassign every adapter with the previous settings according  to the next page :

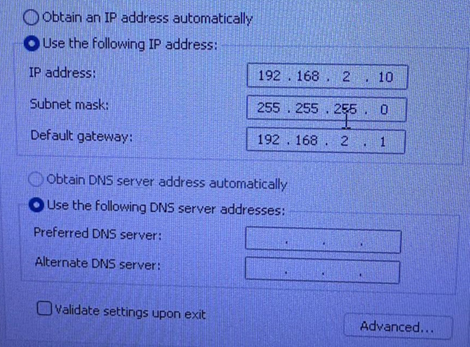

INT config :

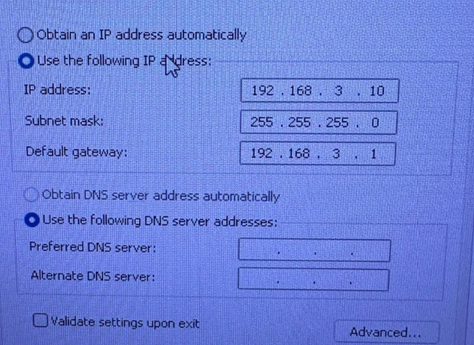

ELD Config :
